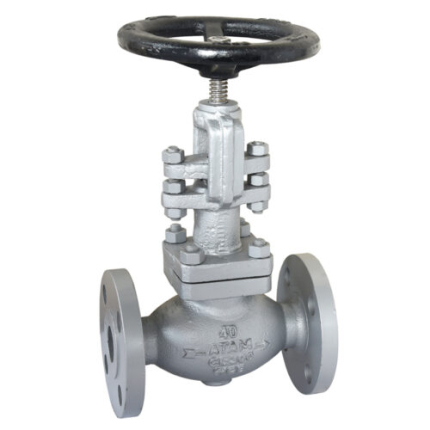

Cast Carbon Steel Globe Valve, Flanged Ends, Class-150 | AV289

Read more
Features Product Standard BS 1873 / ASME B16.34 Testing Standard API-598 Pressure / Class Rating Class-150 Body Material Cum Standard Cast Carbon Steel (ASTM A216 Gr. WCB) Product Description Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated Type of Seat Renewable Seat Type of Disc Renewable Disc Trim 13% Cr. (SS 410) End Details Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled) Test Pressure Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air) Max. Working Temperature 425°C Notes Test Certificate in Form III-C as per IBR is furnished with every supply. Other trim material combinations are available on request.
Quick view

Cast Carbon Steel Globe Valve, Flanged Ends, Class-300 | AV289A

Read more
Features Product Standard BS 1873 / ASME B16.34 Testing Standard API-598 Pressure / Class Rating Class-300 Body Material Cum Standard Cast Carbon Steel (ASTM A216 Gr. WCB) Product Description Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated Type of Seat Renewable Seat Type of Disc Renewable Disc Trim 13% Cr. (SS 410) End Details Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled) Test Pressure Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air) Max. Working Temperature 425°C Notes Test Certificate in Form III-C as per IBR is furnished with every supply. Other trim material combinations are available on request.
Quick view

Cast Carbon Steel Globe Valve, Flanged Ends, Class-600 | AV289B

Read more
Features Product Standard BS 1873 / ASME B16.34 Testing Standard API-598 Pressure / Class Rating Class-600 Body Material Cum Standard Cast Carbon Steel (ASTM A216 Gr. WCB) Product Description Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated Type of Seat Renewable Seat Type of Disc Renewable Disc Trim 13% Cr. (SS 410) End Details Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled) Test Pressure Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air) Max. Working Temperature 425°C Notes Test Certificate in Form III-C as per IBR is furnished with every supply. Other trim material combinations are available on request.
Quick view

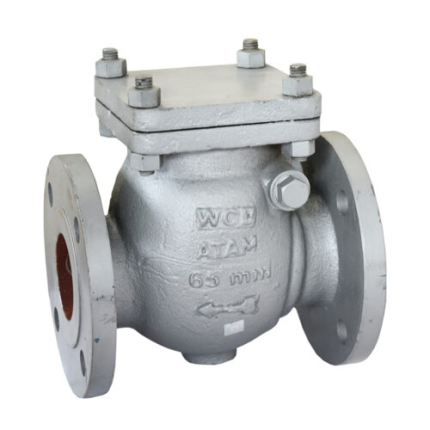

Cast Carbon Steel Swing Check Valve, Flanged Ends, Class-150 | AV290

Read more
Features Product Standard BS-1868 Testing Standard API-598 Pressure / Class Rating Class-150 Body Material Cum Standard Cast Carbon Steel (ASTM A216 Gr. WCB) Product Description Bolted Cover Type of Seat Renewable Seat Trim 13% Cr. (SS 410) End Details Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled) Test Pressure Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air) Max. Working Temperature 425°C Notes Test Certificate in Form III-C as per IBR is furnished with every supply. Other trim material combinations are available on request.
