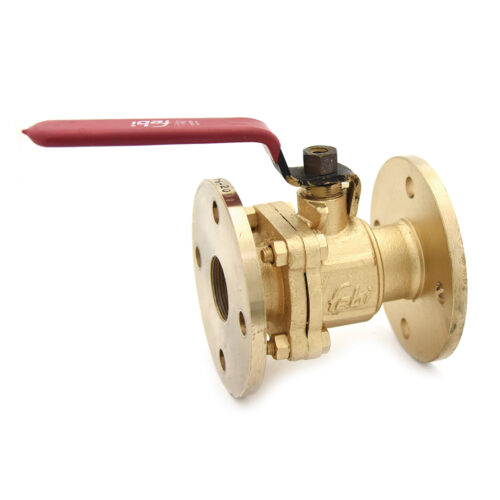

Bronze Ball Valve, Flanged Ends, PN-16 | FV502

Features
Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Flanges as per BS-10 Table-D (Undrilled)

Test Pressure

Body: 348 Psig (Hyd.), Seat: 232 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Notes

Suitable for steam service with specialized PTFE.

SKU: TSA - 007 Categories: ,
Description

Ball valves are a type of quarter-turn rotary valve commonly used in a wide range of industrial, commercial, and residential applications to control the flow of fluids. They are named for their spherical or ball-shaped closure element, which is a key component in their design. Ball valves are highly regarded for their precision control, durability, and versatility in various industries. all valves offer excellent control over fluid flow due to their quarter-turn operation. This enables precise regulation of flow rates, making them ideal for applications where accurate control is crucial. The quarter-turn mechanism enables quick opening and closing of the valve, which is beneficial in emergency shut-off situations and applications requiring rapid flow control adjustments.
