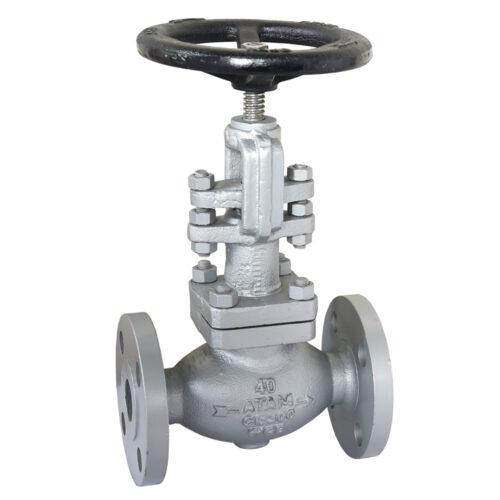

Cast Carbon Steel Globe Valve, Flanged Ends, Class-600 | AV289B

Features
Product Standard

BS 1873 / ASME B16.34

Testing Standard

API-598

Pressure / Class Rating

Class-600

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)

Test Pressure

Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.

Add to quote
SKU: TSA - 063 Categories: , ,
Description

IBR (Indian Boiler Regulation) valves are specialized industrial valves designed to meet the stringent safety and quality standards set by the Indian Boiler Regulation Act. IBR valves are primarily used in industries where boilers and pressure vessels are employed. This includes industries such as power generation, petrochemicals, textiles, pharmaceuticals, food processing, and more. IBR valves come in various types, including gate valves, globe valves, check valves, safety valves, and blowdown valves, among others. Each type serves a specific function in controlling the flow, pressure, or safety of the fluid or gas within the boiler or pressure vessel system.
