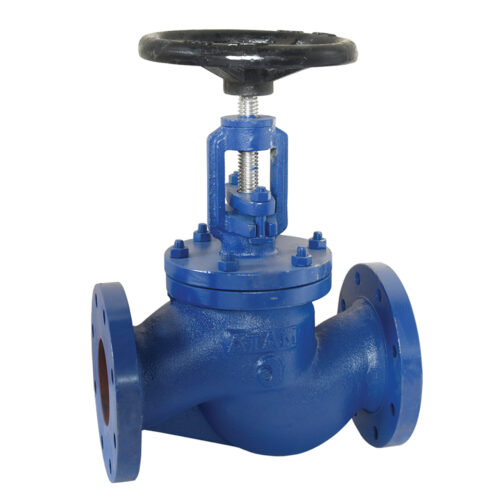

Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-16 | AV251 - Image 1
Click to enlarge
Cast Iron Sluice Valve, Flanged Ends, PN-1.6
Cast Iron Sluice Valve, Flanged Ends, PN-1.6
Back to products
Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-10 | AV251A
Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-10 | AV251A

Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-16 | AV251

Features
Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Drilling as per BS-10 Table-H Raised Face (PN-16)

Test Pressure

Body: 24 kg/cm² (Hyd.), Seat & Back Seat : 17.6 kg/cm²

Max. Working Pressure

13 kg/cm² (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Add to quote
SKU: TSA - 041 Categories: , ,
Description

IBR (Indian Boiler Regulation) valves are specialized industrial valves designed to meet the stringent safety and quality standards set by the Indian Boiler Regulation Act. IBR valves are primarily used in industries where boilers and pressure vessels are employed. This includes industries such as power generation, petrochemicals, textiles, pharmaceuticals, food processing, and more. IBR valves come in various types, including gate valves, globe valves, check valves, safety valves, and blowdown valves, among others. Each type serves a specific function in controlling the flow, pressure, or safety of the fluid or gas within the boiler or pressure vessel system.
