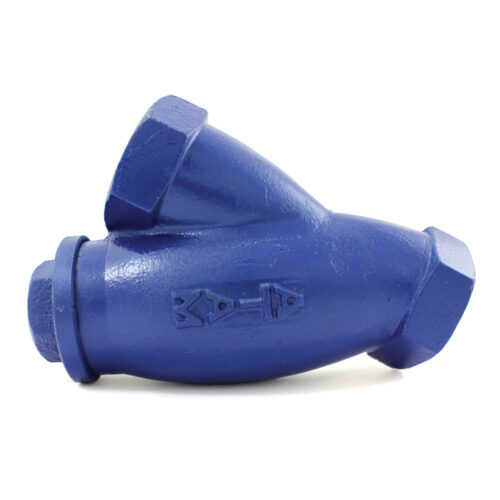

Cast Iron Y-Type Strainer, Screwed Ends | AV257
Features
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Y-Type, Screwed in Cover
Trim
Stainless Steel (AISI 304), Screen Having 1.5 mm Diameter Perforations
End Details
Screwed Female BSP Taper Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.)
Max. Working Pressure
150 Psig (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Description
IBR (Indian Boiler Regulation) valves are specialized industrial valves designed to meet the stringent safety and quality standards set by the Indian Boiler Regulation Act. IBR valves are primarily used in industries where boilers and pressure vessels are employed. This includes industries such as power generation, petrochemicals, textiles, pharmaceuticals, food processing, and more. IBR valves come in various types, including gate valves, globe valves, check valves, safety valves, and blowdown valves, among others. Each type serves a specific function in controlling the flow, pressure, or safety of the fluid or gas within the boiler or pressure vessel system.
