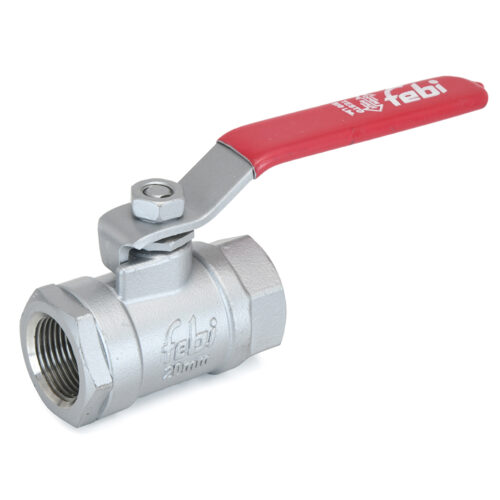

Investment Casting Stainless Steel (CF8) Ball Valve, Screwed Ends | FV507
Features
Product Standard
BS EN 17292
Body Material Cum Standard
Cast Stainless Steel (ASTM A351 Gr. CF8)
Port Opening
Full Bore
Product Description
Two Piece Design, Lever Operated (Blow Out Proof Stem)
Type of Seat
Renewable Seat
Trim
Ball & Stem: Stainless Steel (AISI 304), PTFE Seats
End Details
Screwed Female BSP Parallel Threads (BS-21), Socket Welded Ends as per ASME B16.11
Test Pressure
Body: 2000 Psig (Hyd.), Seat: 1000 Psig (Hyd.), Seat: 100 Psig (Air)
Max. Working Pressure
150 Psig (Steam)
Notes
Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Other screwed end specifications can be provided on request.
Ball valves are a type of quarter-turn rotary valve commonly used in a wide range of industrial, commercial, and residential applications to control the flow of fluids. They are named for their spherical or ball-shaped closure element, which is a key component in their design. Ball valves are highly regarded for their precision control, durability, and versatility in various industries. all valves offer excellent control over fluid flow due to their quarter-turn operation. This enables precise regulation of flow rates, making them ideal for applications where accurate control is crucial. The quarter-turn mechanism enables quick opening and closing of the valve, which is beneficial in emergency shut-off situations and applications requiring rapid flow control adjustments.
