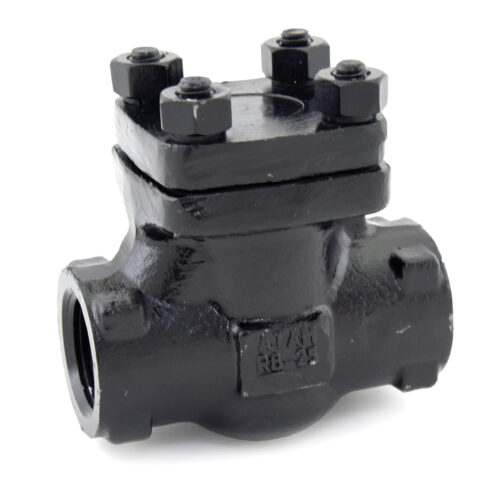

Drop Forged Steel Horizontal Lift Check Valve, Screwed Ends, Class-800 | AV305 - Image 1
Click to enlarge
Drop Forged Steel Globe Valve, Screwed Ends, Class-800 | AV303
Drop Forged Steel Globe Valve, Screwed Ends, Class-800 | AV303
Back to products
Investment Casting Stainless Steel (CF8) Non Slam Check Valve, PN-10/16, Class-150 | AV268
Investment Casting Stainless Steel (CF8) Non Slam Check Valve, PN-10/16, Class-150 | AV268

Drop Forged Steel Horizontal Lift Check Valve, Screwed Ends, Class-800 | AV305

Features
Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Carbon Steel (ASTM A105)

Product Description

Standard Bore, Bolted Cover

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Add to quote
SKU: TSA - 071 Categories: , ,
Description

IBR (Indian Boiler Regulation) valves are specialized industrial valves designed to meet the stringent safety and quality standards set by the Indian Boiler Regulation Act. IBR valves are primarily used in industries where boilers and pressure vessels are employed. This includes industries such as power generation, petrochemicals, textiles, pharmaceuticals, food processing, and more. IBR valves come in various types, including gate valves, globe valves, check valves, safety valves, and blowdown valves, among others. Each type serves a specific function in controlling the flow, pressure, or safety of the fluid or gas within the boiler or pressure vessel system.
