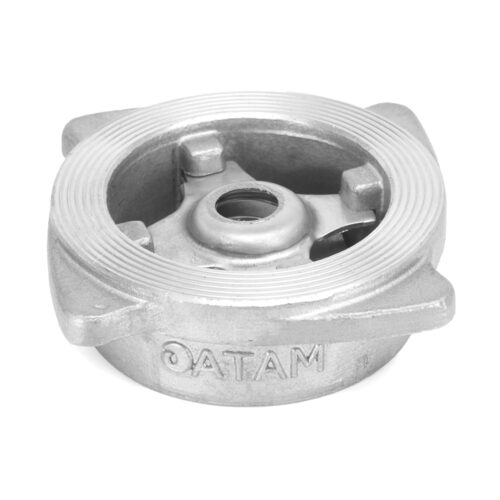

Investment Casting Stainless Steel (CF8) Non Slam Check Valve, PN-10/16, Class-150 | AV268
Description
IBR (Indian Boiler Regulation) valves are specialized industrial valves designed to meet the stringent safety and quality standards set by the Indian Boiler Regulation Act. IBR valves are primarily used in industries where boilers and pressure vessels are employed. This includes industries such as power generation, petrochemicals, textiles, pharmaceuticals, food processing, and more. IBR valves come in various types, including gate valves, globe valves, check valves, safety valves, and blowdown valves, among others. Each type serves a specific function in controlling the flow, pressure, or safety of the fluid or gas within the boiler or pressure vessel system.
Related products
Cast Carbon Steel Globe Steam Stop Valve, Flanged Ends, PN-40 | AV276
Features
Product Standard
BS EN-13709
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-40
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per BS EN 1092-1 PN-40 Raised Face (Drilled)
Test Pressure
Body: 60 Bar (Hyd.), Seat & Back Seat: 44 Bar (Hyd.)
Max. Working Temperature
400°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Carbon Steel Moisture Separator, Flanged Ends | AV291
Features
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Horizontal Type with Drain Feature
End Details
Flanged Ends as per BS-10 Table-F Flat Face (Undrilled)
Test Pressure
Body: 700 Psig (Hyd.)
Max. Working Pressure
350 Psig (Steam)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Carbon Steel Parallel Slide Blow Off Valve, Flanged Ends, (TABLE-J) | AV278
Features
Product Standard
BS EN-13709
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-40
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per BS EN 1092-1 PN-40 Raised Face (Drilled)
Test Pressure
Body: 60 Bar (Hyd.), Seat: 44 Bar (Hyd.)
Max. Working Temperature
400°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Carbon Steel Piston Valve, Flanged Ends, Class-150 | AV271A
Features
Product Standard
ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Piston
Trim
Valve Rings: Atam Standard, Spacer & Piston: 13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Application Medium
Super Heated Steam, Condensate, Thermic Fluids, Hydro Carbons, Chemicals
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Balanced piston arrangement is available in sizes 65mm & above, to address high torque.
Contact for other service applications.
Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-10 | AV251A
Features
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Iron Horizontal Lift Check Valve, Flanged Ends, PN-10 | AV253A
Features
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Iron Moisture Separator, Flanged Ends | AV264
Features
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Horizontal Type with Drain Feature
End Details
Flanged Ends as per BS-10 Table-F Flat Face (Undrilled)
Test Pressure
Body: 300 Psig (Hyd.)
Max. Working Pressure
150 Psig (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Iron Y-Type Strainer, Screwed Ends | AV257
Features
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Y-Type, Screwed in Cover
Trim
Stainless Steel (AISI 304), Screen Having 1.5 mm Diameter Perforations
End Details
Screwed Female BSP Taper Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.)
Max. Working Pressure
150 Psig (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
