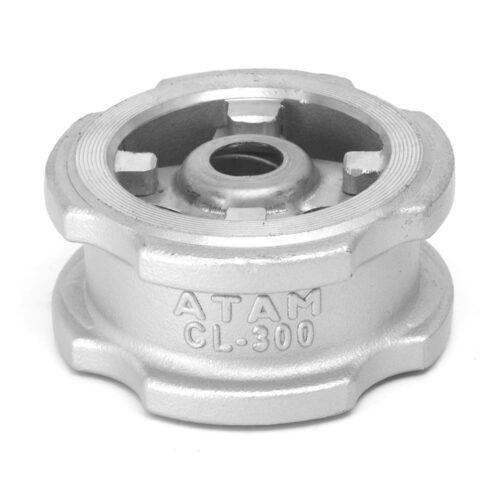

Investment Casting Stainless Steel (CF8) Non Slam Check Valve, Class-300 | AV268A
Description
IBR (Indian Boiler Regulation) valves are specialized industrial valves designed to meet the stringent safety and quality standards set by the Indian Boiler Regulation Act. IBR valves are primarily used in industries where boilers and pressure vessels are employed. This includes industries such as power generation, petrochemicals, textiles, pharmaceuticals, food processing, and more. IBR valves come in various types, including gate valves, globe valves, check valves, safety valves, and blowdown valves, among others. Each type serves a specific function in controlling the flow, pressure, or safety of the fluid or gas within the boiler or pressure vessel system.
Related products
Cast Carbon Steel Gate Valve, Flanged Ends, Class-150 | AV288
Features
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
±3mm tolerance for sizes 300mm and above.
Cast Carbon Steel Globe Steam Stop Valve, Flanged Ends, PN-40 | AV276
Features
Product Standard
BS EN-13709
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-40
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per BS EN 1092-1 PN-40 Raised Face (Drilled)
Test Pressure
Body: 60 Bar (Hyd.), Seat & Back Seat: 44 Bar (Hyd.)
Max. Working Temperature
400°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Carbon Steel Horizontal Lift Check Valve, Flanged Ends, PN-40 | AV277
Features
Product Standard
BS EN-13709
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-40
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per BS EN 1092-1 PN-40 Raised Face (Drilled)
Test Pressure
Body: 60 Bar (Hyd.), Seat: 44 Bar (Hyd.)
Max. Working Temperature
400°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Carbon Steel Piston Valve, Flanged Ends, Class-150 | AV271A
Features
Product Standard
ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Piston
Trim
Valve Rings: Atam Standard, Spacer & Piston: 13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Application Medium
Super Heated Steam, Condensate, Thermic Fluids, Hydro Carbons, Chemicals
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Balanced piston arrangement is available in sizes 65mm & above, to address high torque.
Contact for other service applications.
Cast Carbon Steel Swing Check Valve, Flanged Ends, Class-150 | AV290
Features
Product Standard
BS-1868
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-10 | AV251A
Features
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Cast Iron Horizontal Lift Check Valve, Flanged Ends, PN-10 | AV253A
Features
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Drop Forged Stainless Steel Thermodynamic Steam Trap, Screwed Ends | AV300
Features
Body Material Cum Standard
Forged Stainless Steel (ASTM A182 Gr. F6a)
Product Description
Thermodynamic Type with inbuilt Strainer
Trim
13% Cr. (SS 410)
End Details
Screwed Female NPT Threads (ASME B-1.20.1), Socket Welded Ends as per ASME B-16.11
Test Pressure
Body: 900 Psig (Hyd.)
Max. Working Pressure
450 Psig (Steam)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
